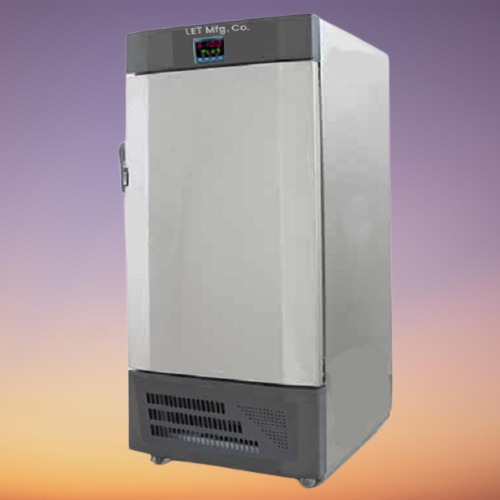

Cooling Incubator

LET’s Cooling Incubator are specially Designed to maintain High Degree of constant Temperature for test tissue culture growth, life cycle test, shelf life studies, storage of bacterial cultures, biological studies, Refrigerated storage & general incubation, etc;. Our Incubator provides accurate conditions & Uniformity throughout the Chamber.

Categories: , ,
Salient Features
  • Double Walled Structure with Extremely efficient thick PUF insulation.
  • Plexiglass Inner door to get inside clear view.
  • Powerful Motorized Air Blower for proper Air Circulation & Temperature Uniformity.
  • Handle and Heavy Duty Hinges for Proper Sealing to maintain Uniformity with Lock and Key Arrangement
  • Wire Mesh Heavy Duty Adjustable Trays for proper storage height.
  • Sealed Compressor with CFC Free R 134 A / R 404 (Eco Friendly) refrigerant.
  • Safety controlling function to cut off the supply in case of overshoot and undershoot of Temperature giving Audio visual alarm
  • Electrical Circuit Breaker.
  • Time delay for Compressor Switch on
  • Overload cut off Relay for Compressor
  • Castor wheel for Easy Movement of the chamber.
  • Validation Protocol with IQ, OQ, PQ, Documents, Operations and Maintenance manuals.
  • Works on 230V AC Single Phase 50Hz
  • Microprocessor based PID, Digital Temperature Controller with Autotune option for Precise control of Temperature.
  • High Quality PT-100 Temperature Sensor.
Optional Features
  • PLC based Control System with 4.3”/ 7” Color touchscreen HMI.
  • 21 CFR Part 11 Compliance Window based Communication Software for Data Management.
  • Data Logger with RS-485/232 Communication.
  • Standby refrigeration System.
  • Network connectivity via Ethernet
  • Chamber illumination with fluorescent or Ultra violet lights
Technical Particulars
  • Capacity (Liters) : 100, 200, 300, 400, 600, 800, 1000
  • Temperature Range : 5 °C to 60 °C
  • Temperature Accuracy : ± 0.5 °C
  • Temp Uniformity : ± 3.0 °C
  • GMP Model(G) :  Inside S.S. 304 & Outside S.S. 304
    Inside S.S. 316 & Outside S.S. 316 (On Demand)
  • Standard Model(S) :  Inside S.S. 304  & Outside mild steel powder coated
    Inside S.S. 316 & Outside mild steel powder coated (On Demand)
Model/Cap.(Ltrs)
Dimension (W x D x H) in CM
Max no.
of Trays
“G” or “S”
Internal
External
CI-100 G/S 45 X 40 X 58 60 X 81 X 120 3
CI-200 G/S 58 X 58 X 60 73 X 108 X 116 3
CI-300 G/S 58 X 58 X 90 73 X 108 X 170 4
CI-400 G/S 65 X 62 X 100 80 X 112 X 185 6
CI-600 G/S 80 X 75 X 100 95 X 125 X 185 7
CI-800 G/S 80 X 80 X 125 95 X 130 X 195 8
CI-1000 G/S 90 X 90 X 124 105 X 140 X 200 8



Above capacities such as 1500L, 2000L, 3000L, etc; will be provided on Request.



Walk in Cooling Incubators are available as per Demand and Requirements.
