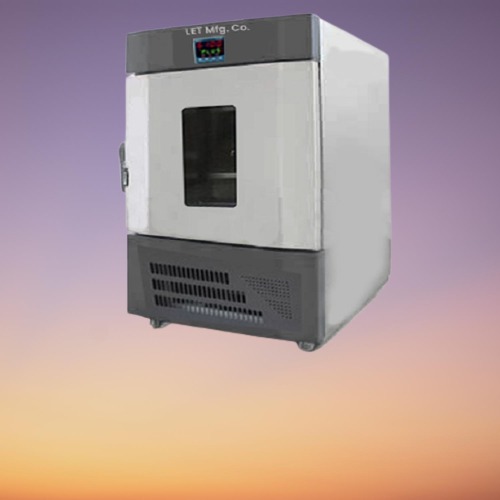

Salient Features
- Double Walled Structure with Extremely efficient thick PUF insulation.
- Powerful Motorized Air Blower for proper Air Circulation & Temperature Uniformity.
- Induction Motor with variable frequency drive suitable for continuous operations.
- Solid Shaking Platform with Counter balanced mechanism for high stability in uneven load of assorted flasks.
- Forward & Reverse Direction of Rotation.
- Handle and Heavy Duty Hinges for Proper Sealing to maintain Uniformity with Lock and Key Arrangement
- Wire Mesh Heavy Duty Adjustable Trays for proper storage height.
- Sealed Compressor with CFC Free R 134 A / R 404 (Eco Friendly) Refrigerant.
- Safety controlling function to cut off the supply in case of Overshoot and Undershoot of Temperature giving Audio visual alarm
- Settable thermostat for safety, Independent of Temperature controller
- Electrical Circuit Breaker.
- Time delay for Compressor Switch on
- Overload cut off Relay for Compressor
- Castor wheel for Easy Movement of the chamber.
- Validation Protocol with IQ, OQ, PQ, Documents, Operations and Maintenance manuals.
- Works on 230V AC Single Phase 50Hz
- PLC based Control system with 4.3” Color Touchscreen HMI (7” available on request).
- High Quality PT-100 Temperature Sensor.
Optional Features
- 21 CFR Part 11 Compliance Window based Communication Software for Data Management.
- Data Storage facility to record set values, process values, date & time with variable time intervals.
- Standby Refrigeration & Humidity System.
- Network connectivity via Ethernet
- Chamber illumination with fluorescent or ultra violet lights
Technical Particulars
- Capacity (Liters) : 150, 225, 600
- Temperature Range : CI Model 5 °C to 60 °C
BI Model Amb+5 °C to 60 °C - Temperature Accuracy : ± 0.5 °C
- Temp Uniformity : ± 3.0 °C
- GMP Model(G) : Inside S.S. 304 & Outside S.S. 304
Inside S.S. 316 & Outside S.S. 316 (On Demand) - Standard Model(S) : Inside S.S. 304 & Outside mild steel powder coated
Inside S.S. 316 & Outside mild steel powder coated (On Demand)
Cap.(Ltrs)/Model |
150-CI |
150-BI |
225-CI |
225-BI |
600-CI |
600-BI |
| Temperature range | 5 to 60 | RT+5 to 60 | 5 to 60 | RT+5 to 60 | 5 to 60 | RT+5 to 60 |
| Temperature accuracy | ± 0.5 °C | |||||
| Inner size (W X D X H ) CM | 60 x 56 x 45 | 60 x 56 x 75 | 110 x 60 x 91 | |||
| External size (W X D X H) CM | 75 x 100 x 126 | 75 x 100 x 152 | 125 x 106 x 174 | |||
| Platform size (cm) | 46 x 46 | 94 x 46 | ||||
| No. of Platform | 1 | 1 | 2 | 2 | 2 | 2 |
| MOC of Platform | Aluminium Anodized | |||||
| Shaking speed range (RPM) | 30 to 250 | |||||
| Shaking amplitude (mm) | 50 | |||||
| Shaking motion | Orbital | |||||
Platform Configuration |
||||||||
Cap. (Ltrs) |
Platform size (cm) |
No. of platform |
50ml |
100ml |
250ml |
500ml |
1000ml |
2000ml |
| 150 | 46 x 46 | 1 | 48 | 35 | 25 | 16 | 9 | 6 |
| 225 | 46 x 46 | 1 | 48 | 35 | 25 | 16 | 9 | 6 |
| 600 | 94 x 96 | 2 | 96 | 70 | 50 | 32 | 18 | 12 |
